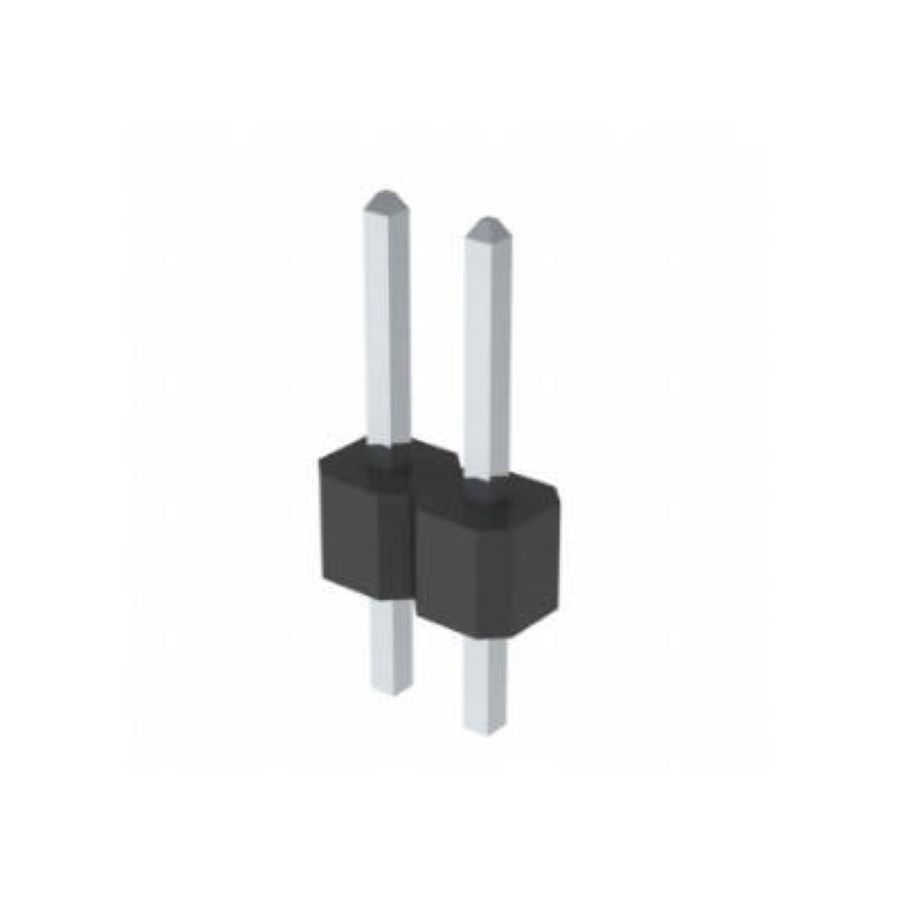

PEC02SAAN
Manufacturer:
Sullins Connector Solutions
Mfr.Part #:
PEC02SAAN
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:2 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 5.08 mm |
| Width | 2.54 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Height | 2.54 mm |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze, Nickel, Tin |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Color | Black |
| Gender | Male |
| Number of Contacts | 2 |
| Connector Type | Male Pin |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Plastic |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Mating Post Length | 5.84 mm |
| Termination Post Length | 3.05 mm |
Stock: 15069
Distributors
pcbx
pcbxUnit Price$0.23756
Ext.Price$0.23756
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.23756 | $0.23756 |
| 10 | $0.20087 | $2.00870 |
| 25 | $0.19019 | $4.75475 |
| 50 | $0.18007 | $9.00350 |
| 100 | $0.17049 | $17.04900 |
| 300 | $0.16106 | $48.31800 |
| 500 | $0.15216 | $76.08000 |
| 1000 | $0.14489 | $144.89000 |
| 3000 | $0.13689 | $410.67000 |
| 5000 | $0.12933 | $646.65000 |
| 10000 | $0.12316 | $1231.60000 |
